Hose & Ferrule Kit for Jaguar V12 HE Injectors – Kit 131
This kit is compatible with Jaguar XJ/XJS 5.3 V12 HE and Daimler Double Six applications fitted with Bosch 0280150161, 0280150162, 0280150163 or 0280150164, Lucas 73304A, or EAC7874/EAC7875 injectors. Check your injector numbers before ordering.
First developed by Mr Injector UK in 2016. Buy direct here from the manufacturer; stockist prices may differ.
Its ethanol-resistant fuel hose lets you upgrade older polyester-reinforced injector hoses, helping futureproof your classic car as ethanol content in petrol rises and fuel blends change.
Check the inlet before ordering: this setup uses ferrules at both ends of each injector hose. Compare the injector and rail connections with the product photos. The 10 shorter hose pieces and 2 longer front-injector pieces are supplied pre-cut to length.

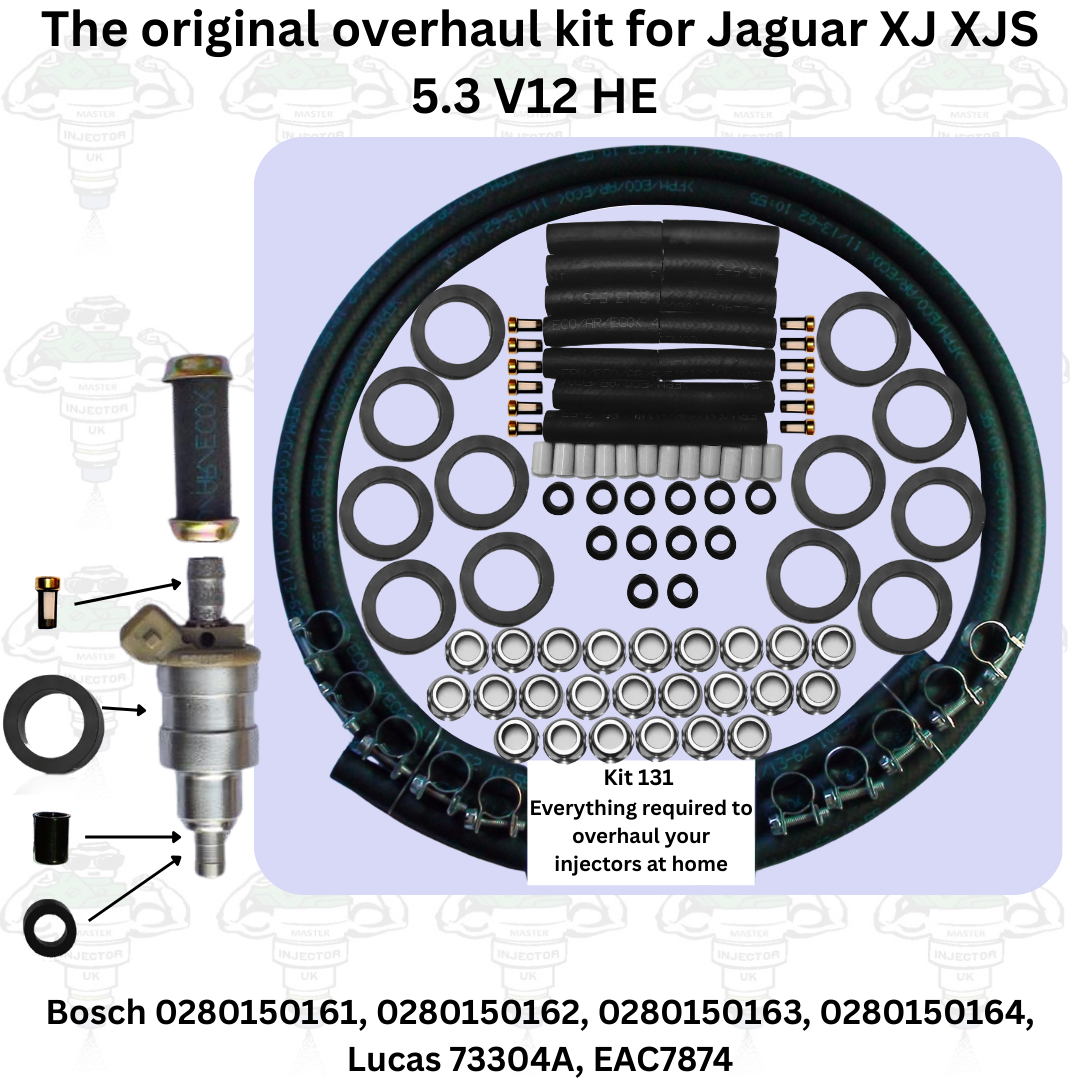

What’s included
- 10 × short ethanol-resistant hose lengths, pre-cut to length
- 2 × longer ethanol-resistant hose lengths for the front injectors, pre-cut to length
- 24 × hose ferrules
- 12 × pintle caps
- 12 × inlet manifold seals
- 12 × injector filter baskets
- 12 × mid-body clamping rubbers
- 10 × hose clips
- 2 m × aramid-reinforced, high-pressure ethanol-resistant fuel hose for feed, return and other same-diameter engine hoses
- 10 × additional hose clips for the extra hose
- Step-by-step illustrated instruction sheets
Choosing between Kit 131 and Kit 180: If you only need the injector overhaul parts, without the extra hose and clips supplied with Kit 131, consider the smaller Kit 180. It includes the pre-cut injector hoses, ferrules, seals, filters, pintle caps and mid-body clamping rubbers for the injector fitment listed above.
Fuel Hose specifications
-
Construction: FPM inner tube, ECO rubber intermediate layer, braided aramid-fibre reinforcement and ECO rubber outer cover
-
Working pressure: 10 bar
-
Burst pressure: 50 bar
-
Temperature range: −40°C to +125°C (up to +150°C for short periods)
-
Standards listed: DIN 73379-B1, SAE J30R9, BMW GS 93010, DBL 6256.70, GME 08 007 and VW TL 524 24
-
Fuel compatibility: Ethanol-resistant and suitable for E10, biodiesel (RME) and commercially available fuels
Before you order
- Confirm your injectors match one of the part numbers listed above.
- The injector shown in the product photo is for identification only and is not included.
- Due to carrier weight limits and transit insurance caps, order one Kit 131 at a time. For multiple kits, place separate orders.
⚠️ Why you should check your old fuel hoses
UK fuel can contain up to 10% ethanol. Older polyester-reinforced fuel hoses can degrade over time, becoming hard, brittle or cracked. Leaks can occur, risking an engine fire. At the same time as replacing the injector hoses, it is advised to check the fuel feed and return lines and any other hoses around the engine, and replace any that are aged, cracked, hard, or unsuitable for current fuel.
All kits and parts orders dispatched by Master Injector UK.
