Service Kit For Weber Marelli IW Series Injectors 4 Cylinders - Kit 184

Parts kit for Weber Marelli IW series injectors, this features the filter baskets, top and bottom seals, spacers and pintle caps to refurbish your injectors at home with no special tools required.

This is a modification of our Kit 4 as the usual replacement Marelli blue pintle caps can fit too loosely, dropping off into the manifold during removal - our specially designed cap here is a much tighter, permanent answer to this problem.

Weber IW series injectors that suit this kit are:

IW025, Lancia 7546513

IW031, Maserati 470063003 / 313720121 / 313720153 / 313720119, Ducati 28040021A, Fiat 7598006

IW042, Ducati 28040041A, Ferrari 134531, Fiat 7598007

IW044, Ford 88WF-A2A

IW050, Ford 88WF-A2A

IW051, Lancia 7797250

IW052

IW054, Peugeot 96053199

IW057, Fiat 7788857

IW058, Lancia 7654435

Weber IW injectors were used in a multitude of manufactures and models, for example:

Maserati Biturbo, Ghibli, Quattroporte

Lamborghini Diablo, Murceilago, Murcielago Roadster

Lancia Delta Integrale, Dedra

Fiat Tipo, Tempra, Tempra SW

Moto Guzzi

Ford Sierra Sapphire and Escort Cosworth

Peugeot

Renault

Citroen

Ducati 851, 888

Harley Davidson

Ferrari F40

Contents

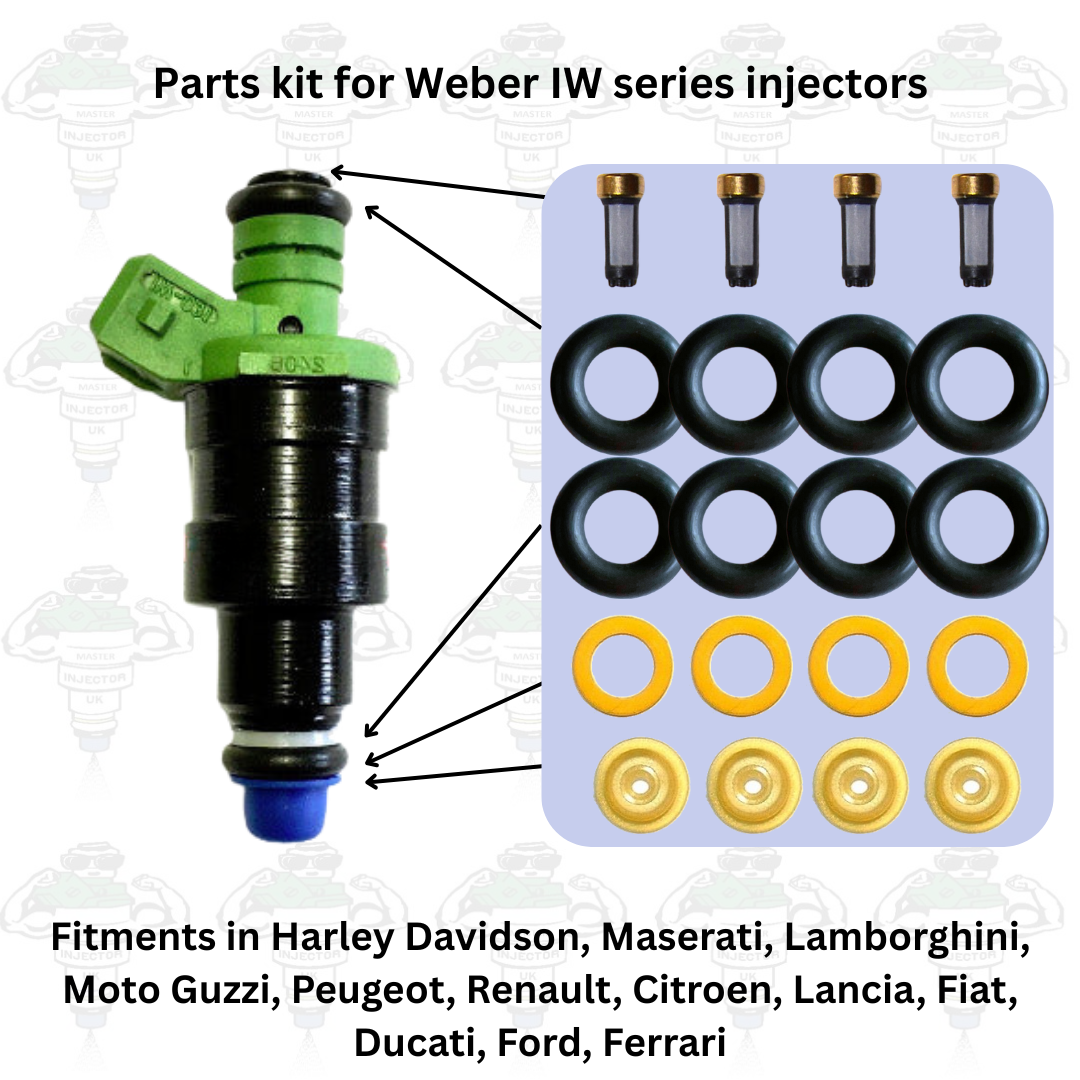

Kit 184 contains:

8 x Top and bottom Viton seals

4 x Spacers

4 x Filter baskets - Weber fit 6.6mm x 14mm long

4 x Modified pintle caps

Terms

If you aren't sure which kit you need for your Weber injectors, please email us.

All parts equal to or exceed specifications of originally installed parts at manufacture.

All kits and parts orders dispatched by Master Injector UK.
