Service Parts Kit For Weber IW Series Injectors Featuring Seals, Filters & Caps 4 Cylinders - Kit 5

This kit was designed for large Weber IW injectors with injector reference number IW --- .

These are the same sized injector as the Bosch L type but Webers have larger filters.

The kit contains 14.5mm top and bottom Viton seals, Weber-sized pintle caps and the larger Weber-sized filter baskets to refurbish 4 injectors at home with no special tools.

Weber IW series injectors that suit this kit are:

IW025, Lancia 7546513

IW031, Maserati 470063003 / 313720121 / 313720153 / 313720119, Ducati 28040021A, Fiat 7598006

IW042, Ducati 28040041A, Ferrari 134531, Fiat 7598007

IW044, Ford 88WF-A2A

IW050, Ford 88WF-A2A

IW051, Lancia 7797250

IW052

IW054, Peugeot 96053199

IW057, Fiat 7788857

IW058, Lancia 7654435

Weber IW injectors were used in a multitude of manufactures and models, for example:

Maserati Biturbo, Ghibli, Quattroporte

Lamborghini Diablo, Murceilago, Murcielago Roadster

Lancia Delta Integrale, Dedra

Fiat Tipo, Tempra, Tempra SW

Moto Guzzi

Ford Sierra Sapphire and Escort Cosworth

Peugeot

Renault

Citroen

Ducati 851, 888

Harley Davidson

Ferrari F40

Contents

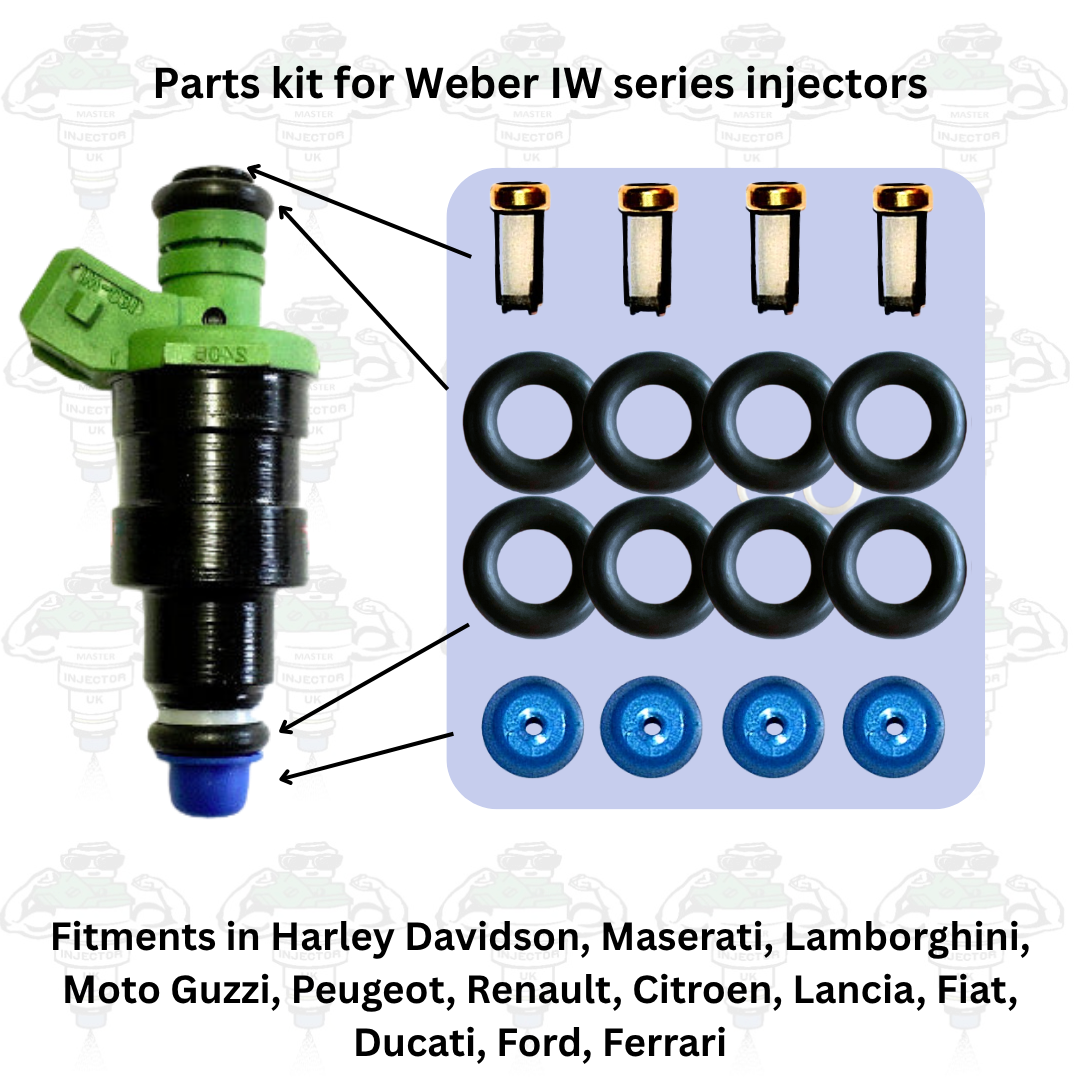

Seal Kit 5 contains:

4 x Weber-sized filter baskets 6.6mm x 14mm long

4 x Top Viton 14.5mm seals

4 x Bottom Viton 14.5mm seals

4 x Pintle caps

Terms

The injector in the photo is for reference purposes only and is not included in the sale.

All parts equal to or exceed specifications of what was originally installed on your injectors in function and material.

All kits and parts orders dispatched by Master Injector UK.
