Hose & Ferrule Kit For Jaguar V12 HE Fitted With Lucas 73303A Injectors - Kit 85
Hose & Ferrule Kit For Jaguar V12 HE Fitted With Lucas 73303A Injectors - Kit 85
50 in stock
Couldn't load pickup availability
This kit was designed for V12 Jaguar with Bosch EV1 L Jetronic type injectors with a double arrow headed inlet port, requiring ferrule clamping to the injector and the fuel rail.
Contained are 12 pieces of Aramid reinforced fuel hose cut to exact length for your V12 Jaguar fitted with Bosch 0280150161, 0280150162, 0280150163 or 0280150164 injectors or Lucas equivalent such as 73303A. Also contained are the ferrules, perfectly matched to our hose, allowing you to change your old polyester reinforced hoses to our new ethanol-proof hose.

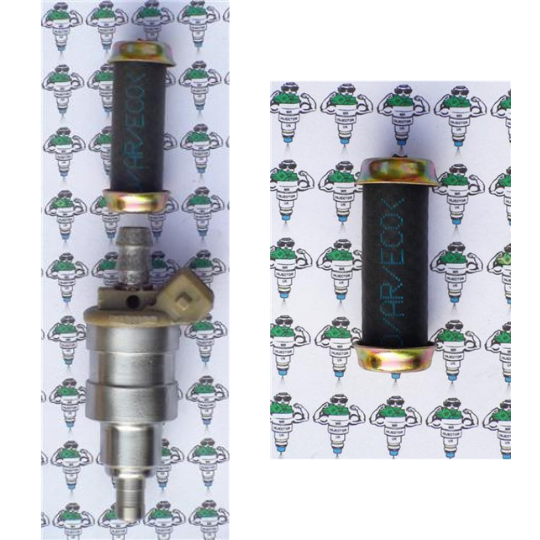

Please see the photo to identify the double arrow headed inlet port.
Due to the rising ethanol levels in today's fuels, the old polyester hoses in your engine become hard and crack over time, causing leaks and unfortunately risking engine fires. We advise changing all old hoses around the engine to our Aramid reinforced fuel hose, not just the injector hoses but the feed and return lines too.
Our hose is 100% ethanol-resistant and is used in the aerospace and aviation industries.

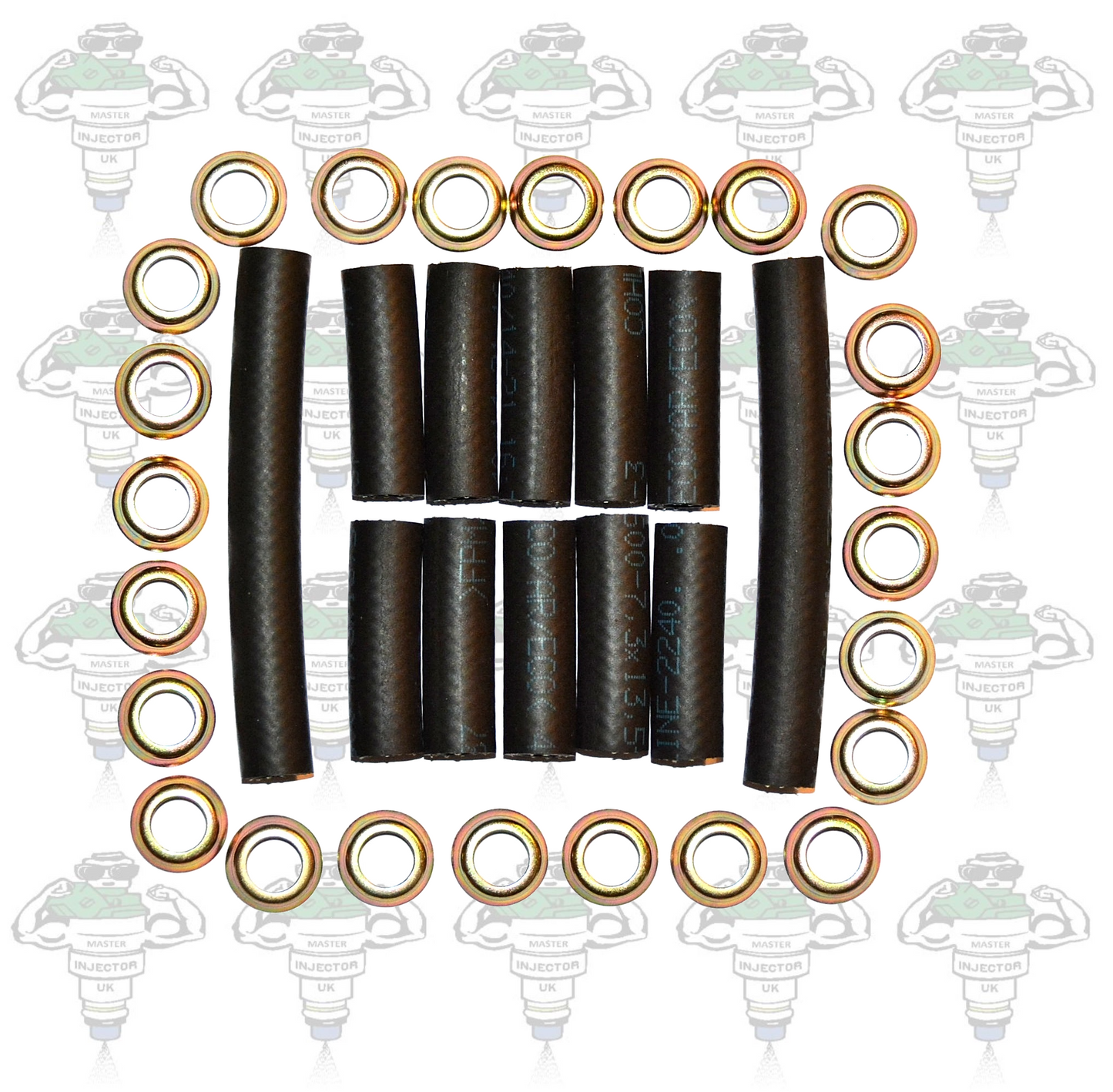

Contents
Seal Kit 85 contains:
2 x Long hoses (for the front injectors)
10 x Short hoses
24 x Hose ferrules (for each end of the hose pieces)
Also included with all hose kit orders are our instruction sheets, carefully put together to help you with the task.
Terms
The injector in the photo is not included in the sale, it is there to help you identify the kit.
****
A little about our hose:
Our hose offers excellent chemical resistance, high-pressure tolerance and thermal stability.
FPM and ECO rubber hose with internal aramid braiding. DIN 73379-B1.
It features a durable, high performance multi-layer design, composed of:
· FPM (fluor elastomer) rubber inner tube for chemical resistance and high-temperature performance,
· ECO (epichlorohydrin) rubber intermediate layer for good oil resistance and heat stability,
· Braided aramid fibre reinforcement layer for exceptional tensile strength, pressure resistance and flexibility,
· ECO rubber outer cover for resistance to weathering, ozone and oils.
Suitable for commercially available fuels: ethanol, bio-diesel consisting of rape oil methyl ester and E 10 fuel, from -40 degrees C to +125 degrees C.
All kits and parts orders dispatched by Master Injector UK.
Share
Because of the delicate nature of injectors, particularly historic hose ones, we advise using somebody competent in removing/installing the parts for you to prevent issues arising such as over-tightening of the hose clamps or damaging the pintle needles. Doing so yourself is at your own risk and we take no responsibility for damage resulting from poor handling or installation of parts.
