Lucas 73304A Compatible Fuel Injector Hoses + Ferrules V12 Jaguar Kit - Kit 85

This kit was designed for your V12 Jaguar fitted with Lucas 73304A injectors.

To suit Bosch EV1 L Jetronic type injectors with a double arrow headed inlet port, requiring ferrule clamping to the injector and the fuel rail.

Please see the photo to identify the double arrow headed inlet port.

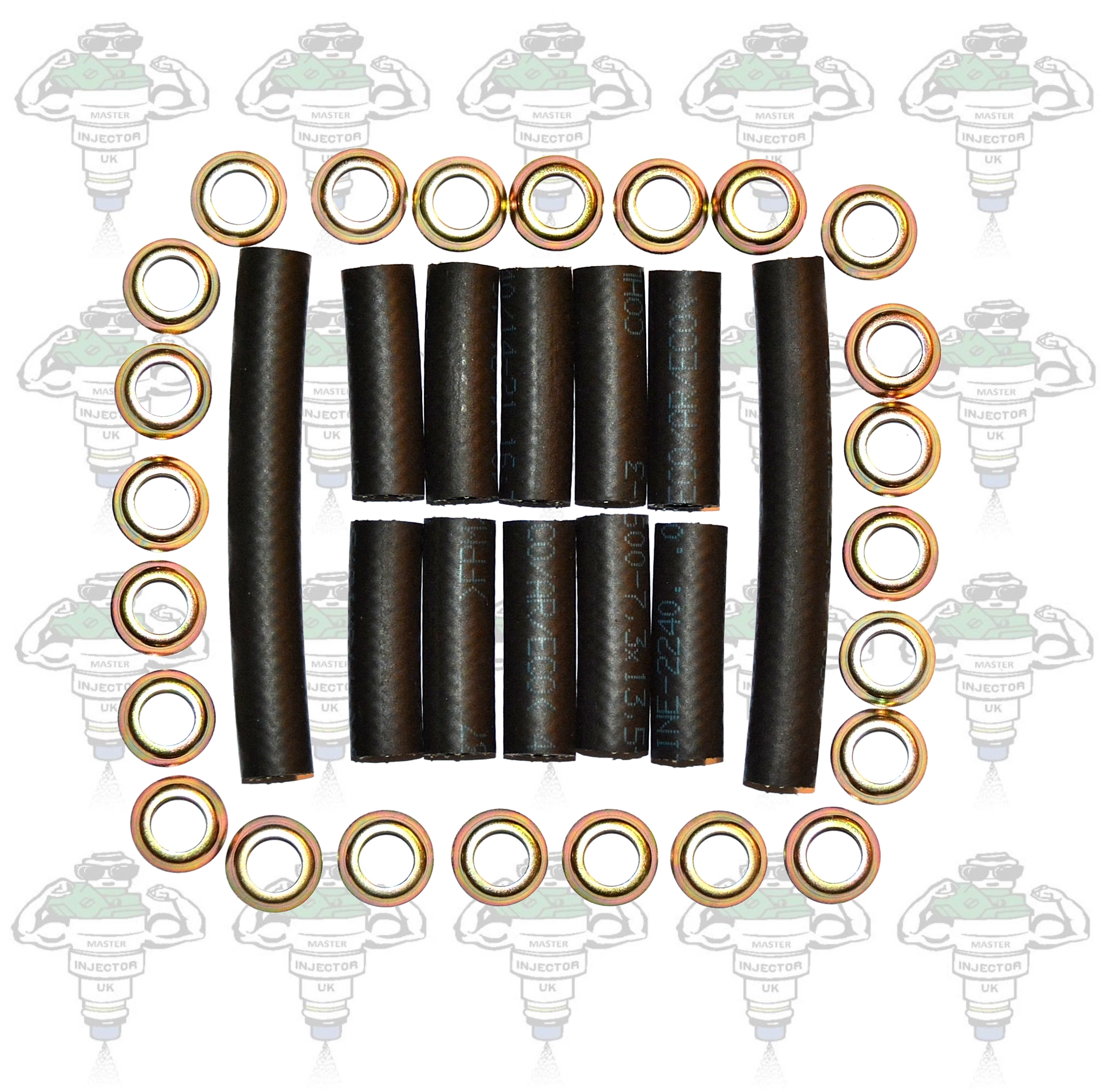

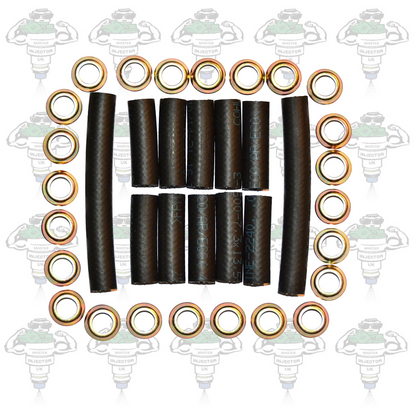

The kit contains 12 pieces of Aramid reinforced fuel hose cut to exact length for your injectors, plus the hose ferrules that have been perfectly matched to our hose.

Contents

Seal Kit 85 contains:

2 x Long hoses (for your front injectors)

10 x Short hoses

24 x Hose ferrules

Also included in all hose kit orders are our instruction sheets, carefully put together to help you with the task.

Terms

No injectors included in the sale.

This hose is expensive, but it's the correct hose to use now. Using any other type of high-pressure hose could compromise your vehicle.

The hose is ethanol resistant 100% and is used in aviation and aerospace, din 73379 Type 3E rev/11/97.

Use this kit to replace your old polyester reinforced rubber fuel feed pipe because, over time, if you do not it will leak, unfortunately possibly resulting in leaks and/or engine fires.

ARAMID is the only hose to use now, new levels of ethanol present in fuels in the UK will slowly eat your old type polyester reinforced hose with disastrous consequences,

There is at present some 10% ethanol in UK fuels set to rise each year and up to 25% present in some parts of the world.

You cannot afford not to change the fuel line hoses on your injectors.

These are exacting items, the hose and clip combination have been perfectly matched to the original injector parts. All parts tried, tested and manufactured for Mr Injector UK. All parts equal to or exceed specifications of what was originally installed on your injectors in material and function.
